Open-type CNC fiber laser cutting machine with exchange table.
available immediately

A precise solution for profiles and tubes

An advanced technological solution designed for the precise processing of tubes, profiles, and sections with various cross-sections. The machine enables stable and accurate cutting of elements up to 6 m in length, maintaining the highest edge quality and repeatability of parts—regardless of geometric complexity.

The cutting machine combines high efficiency, flexibility of applications, and reliability, making it perfectly suited for both serial production and more complex, one-off projects. The integrated rotary unit allows fast and precise material positioning, enabling free cutting of round, square, rectangular tubes as well as special profiles.

A well-thought-out design, modern components, and intuitive software make machine operation simple and predictable, ensuring a smooth and uninterrupted production process. This is a durable and versatile solution that guarantees stable operation, high precision, and efficiency over many years of intensive use.
Video preview
×

RayTools and Precitec cutting heads

Otinus machines are equipped as standard with a RayTools autofocus cutting head, providing high cutting quality, reliability, and ease of operation for most industrial applications. For more demanding projects, an optional Precitec head is available, offering even greater precision, higher working speed, and excellent results when processing thick or complex materials.

The machine’s capabilities can be further expanded with a 3D cutting head, enabling angled cutting, chamfers, bevels, and more complex geometries—turning the cutter into a versatile tool for advanced production tasks.
Precitec and Raytools laser cutting heads shown side by side, designed for high-precision fiber laser cutting across a wide range of power levels in industrial laser cutting machines.

Reliable laser sources

We offer a choice of laser sources from two renowned brands: Raycus and Max Photonics. Both guarantee reliability, with the selection depending on the intensity and nature of your production. Max Photonics delivers high beam quality and stable performance—ideal for continuous operation and complex jobs. Raycus is a more economical solution, combining solid performance with a competitive price.
Max Photonics fiber laser sources displayed in multiple power configurations, designed for industrial laser cutting machines and optimized for high efficiency, reliability, and stable cutting performance.

Rotary chuck for profiles and tubes

The rotary chuck enables extremely precise cutting of tubes and profiles up to 6,000 mm in length and with diameters of up to 350 mm. This wide range of capabilities makes the machine ideal for manufacturing steel structures, load-bearing elements, and complex spatial components. The applied material clamping system ensures a secure grip and stability, resulting in high repeatability, accuracy, and cut quality—even at high working speeds.

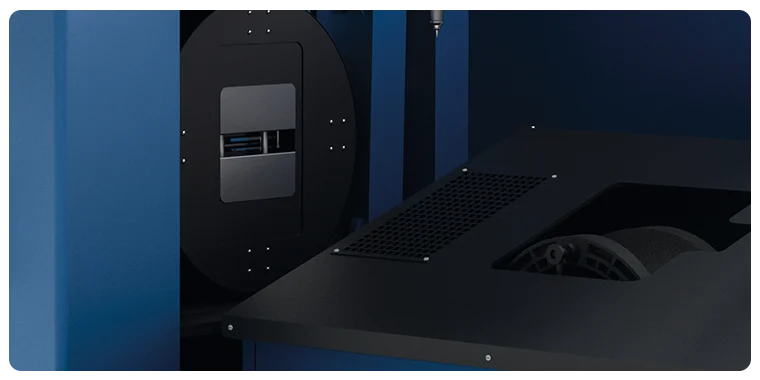

Integrated rotary chuck of the Otinus laser cutting machine for tubes and profiles, enabling precise positioning and stable clamping of the workpiece.

Part collection trolley

The extendable collection trolley significantly facilitates the removal of finished parts, especially longer profiles and tubes. It provides the operator with convenient access to machined components, improving workplace ergonomics and reducing the risk of material damage. The trolley streamlines the entire production process, making it smoother and more intuitive.

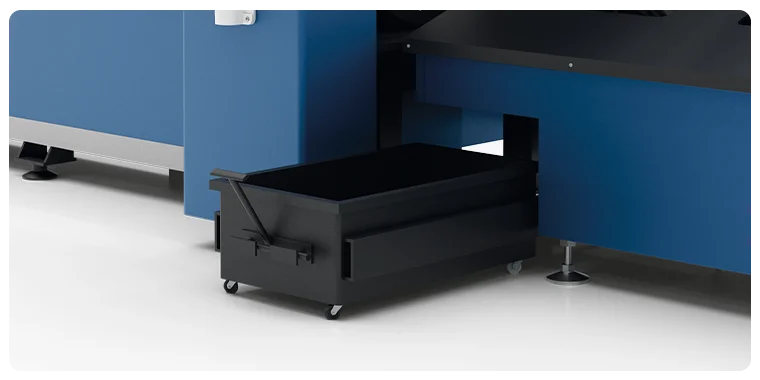

Waste and finished parts collection container under the Otinus laser cutting machine, mounted on wheels for easy sliding out and emptying.

Rigid machine construction

The rigid, welded frame made of high-quality steel profiles ensures excellent stability during machine operation. This design minimizes vibrations and guarantees full cutting precision even at high speeds. As a result, the cutter maintains accuracy and performance over many years of intensive use, making it a durable and load-resistant investment.

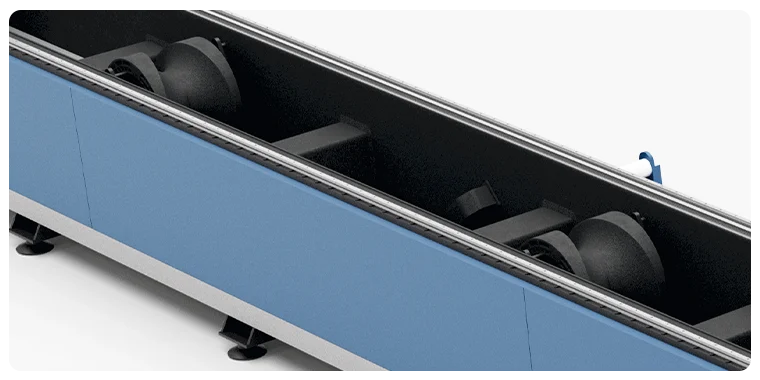

Tube supports in a laser cutting machine for tubes and profiles, equipped with rollers that stabilize the material during cutting.

Automatic loading system

The applied automatic loading system enables full automation of the tube and profile cutting process. The machine can independently pick up material, prepare it for processing, and feed it into the cutting zone, significantly increasing productivity and reducing order lead times. This solution is particularly effective in serial production and wherever continuity and high throughput are essential.

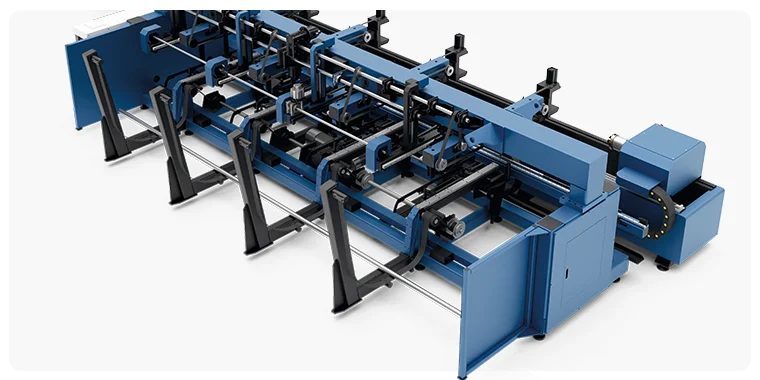

Automatic loader for the Otinus laser cutting machine for tubes and profiles, equipped with a multi-stage system of guides and feeding arms.

Additional third chuck

The third chuck is an advanced structural element that enables stable support and precise guidance of the material beyond the cutting zone. This allows the full length of the tube or profile to be processed without leaving technological scrap. The solution reduces material costs, increases process efficiency, and ensures better raw material utilization.

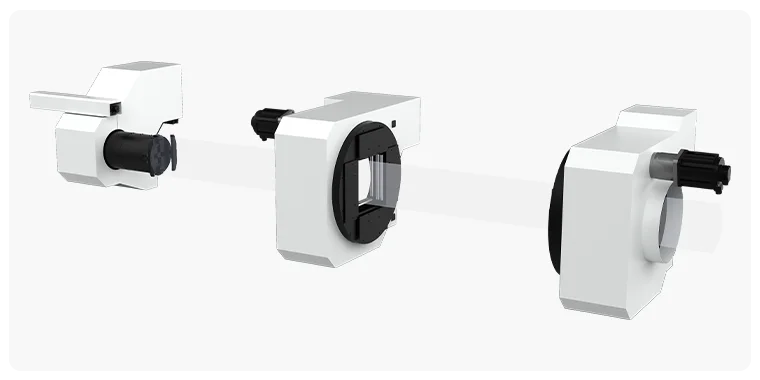

Set of three clamping chucks for laser cutting machines for tubes and profiles, shown from different angles.

Intuitive control system

The machine operates in the CypCut (Windows 10) environment, providing intuitive operation and quick access to all cutting parameters. The operator can use a screen, keyboard, and mouse, increasing comfort and enabling fast adjustments. In addition, the included wireless remote control allows convenient machine operation from a greater distance—particularly useful when working with long profiles and tubes.

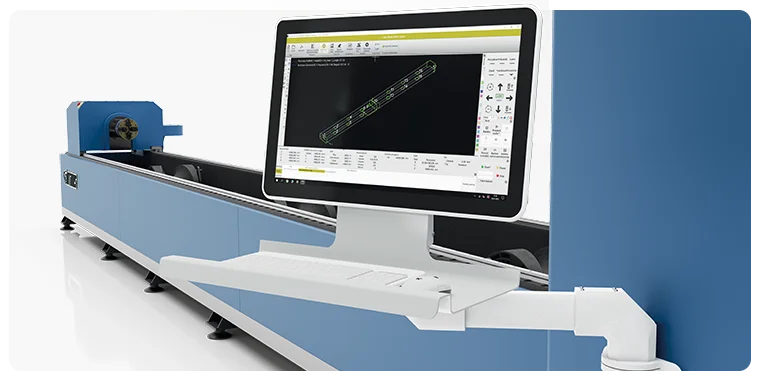

Control panel with tube and profile cutting software mounted next to the Otinus laser cutting machine.

Automatic follow-up supports

Automatic supports equipped with servo drives adjust their height in real time to the current position and geometry of the material. As a result, tubes and profiles remain stable throughout the entire cutting process, without swaying or bending. This solution directly improves cutting precision and quality, especially when machining long or heavy elements.

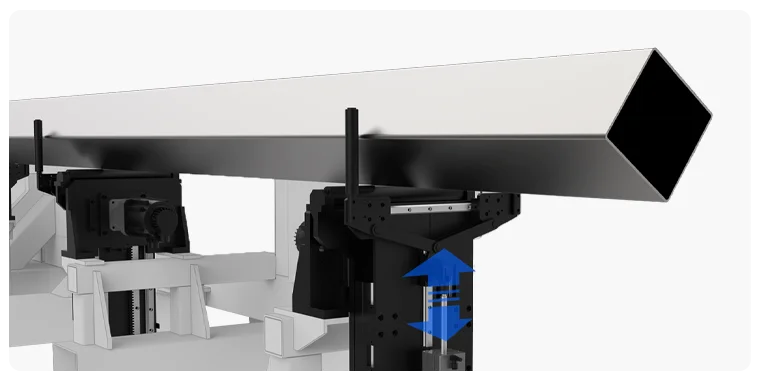

Profile support holder in the Otinus tube and profile laser cutting machine, with the vertical adjustment range clearly highlighted.

General specifications

Nominal working area

6,000 mm × 230 mm
X, Y axis positioning speed (simultaneous)

110 m/min
Dead zone

min. 120 mm
Acceleration

up to 10 m/s²
X, Y, Z, B axis drives

YASKAWA SGD-Series
X, Y axis drive transmission

rack and pinion, helical teeth
Z axis drive transmission

ball screw
Scrap and small part sorting

manual, pull-out container
Dust extraction system

integrated
Frame

steel, monolithic
Crossbeam

aluminum
Lubrication system

automatic
Number of chucks

2
