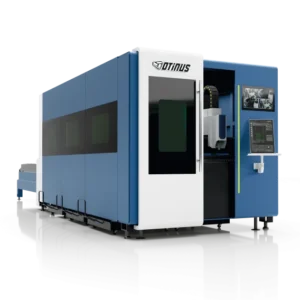

Otinus enclosed fiber laser cutting machine with CNC control panel and fully enclosed protective housing.
Enclosed Otinus CNC laser cutting machine with protective housing, external touchscreen control panel, and shuttle table system for safe and efficient sheet metal processing.

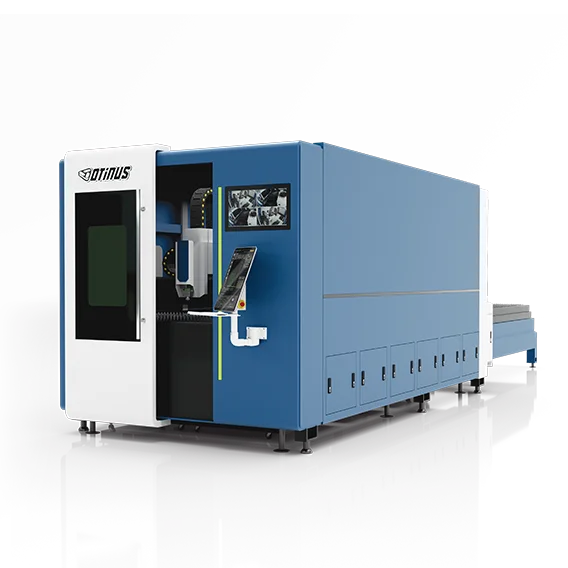

Enclosed Otinus CNC fiber laser cutting machine with integrated control panel and safety housing, designed for precise industrial sheet metal processing.
available immediately

Versatility and cutting precision

A fiber laser cutting machine with a full enclosure is a modern solution for precise and safe sheet metal cutting. The enclosed design protects the operator and reduces the emission of fumes and noise, ensuring a high level of working comfort.

The machine combines accuracy, efficiency, and reliability, performing equally well in serial production and custom projects. Thanks to modern components and a refined design, it guarantees smooth operation, easy handling, and stable cutting parameters over many years of use.
Video preview
×

RayTools and Precitec cutting heads

Otinus machines are equipped as standard with a RayTools cutting head with autofocus, ensuring high cutting quality, reliability, and ease of operation. This is a universal solution, ideal for most industrial applications. For more advanced requirements, an optional Precitec cutting head is available, offering even greater cutting precision, higher speed, and the ability to process thick materials or complex shapes. Precitec is the choice for plants that demand maximum efficiency and accuracy.

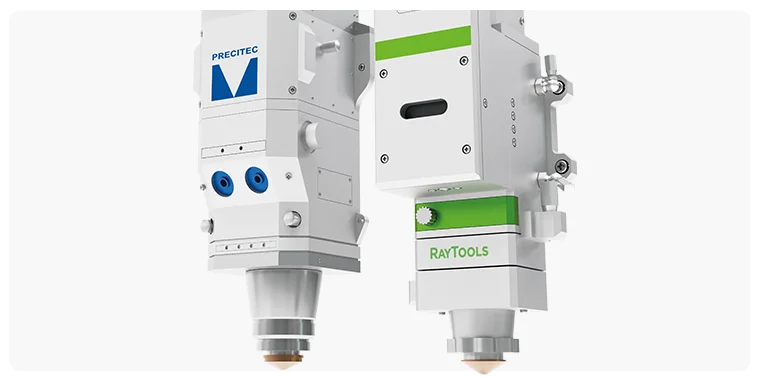

Precitec and Raytools cutting heads — industry-leading laser cutting heads known for precision, reliability, and high performance in fiber laser cutting systems.

Reliable laser sources

We offer a choice of laser sources from two renowned brands: Raycus and Max Photonics. Both guarantee reliability, and the selection depends on the intensity and specifics of your production. Max Photonics provides high beam quality and stable operation—ideal for continuous work and complex orders. Raycus is a more economical solution, combining solid performance with a competitive price.

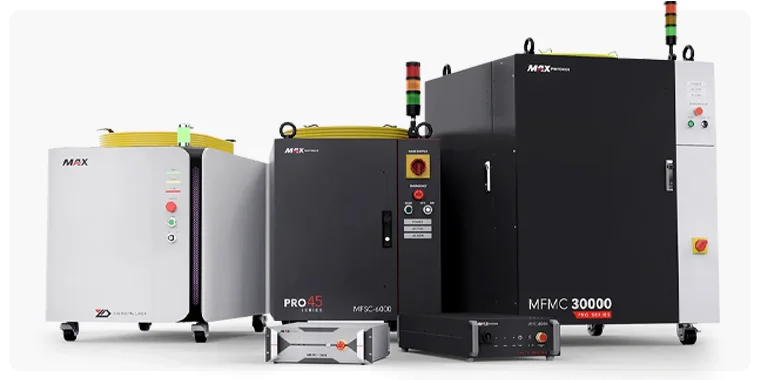

A range of MAX Photonics fiber laser sources, covering different power classes, designed for industrial laser cutting applications—compact, efficient, and optimized for stable, high-performance operation.

Full operational safety

The enclosed machine design guarantees 100% safety during operation. The housing isolates the operator from the cutting zone, effectively protecting against laser radiation, sparks, and contaminants. An integrated light signaling system and safety sensors monitor the machine’s status in real time, immediately responding to any irregularities. This allows the operator to fully focus on work, confident that the cutting process is carried out under controlled and safe conditions.
Fully enclosed Otinus CNC laser cutting machine with shuttle table and external touchscreen control panel, designed for safe, efficient, and high-precision sheet metal cutting.

Durable linear guides

Profile rail linear guides ensure smooth and stable movement across the entire working range of the machine, regardless of usage intensity. Their high accuracy class and automatic lubrication system significantly extend service life while minimizing maintenance. This solution maintains maximum cutting head positioning precision even after thousands of operating hours, resulting in consistent cutting quality and repeatability.
Helical rack drive mounted alongside the laser cutting bed, enabling precise and smooth axis movement for accurate CNC laser cutting operations.

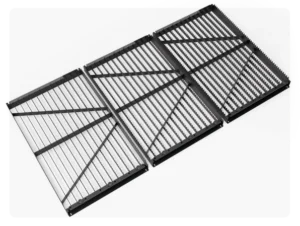

Replaceable serrated inserts

The modular serrated insert system allows quick and easy replacement of consumable elements without stopping the entire production process. Thanks to its well-designed construction, the user can easily keep the table clean, improving material support quality and sheet stability during cutting. Replaceable modules minimize downtime and simplify maintenance, resulting in longer machine life and lower operating costs.
Segmented serrated cutting table for a CNC laser cutting machine, designed to support metal sheets while minimizing contact and improving cutting quality.

Efficient fume extraction

The high-performance sectional extraction system effectively removes fumes, dust, and gases generated during cutting, keeping the working chamber clean. Intelligent airflow control directs extraction precisely to the active cutting area, increasing filtration efficiency. As a result, the operator benefits from a clean workspace, while optical and mechanical components remain in excellent condition—positively affecting precision and machine durability.
Laser cutting machine extraction and airflow system integrated into the machine frame, directing fumes and heat downward to protect internal components during high-power cutting.

Fast part removal

Pull-out trays located beneath the cutting area allow quick and safe removal of cut parts without interrupting machine operation. The ergonomic drawer design facilitates handling even with a large number of small parts, minimizing the risk of damage. This solution significantly speeds up production, improves workstation organization, and provides convenient access to finished components.
Enclosed Otinus CNC laser cutting machine with protective housing, external touchscreen control panel, and shuttle table system for safe and efficient sheet metal processing.

Stable machine frame

The rigid and massive main frame structure forms a solid foundation for the entire machine, eliminating vibrations and deformations generated at high positioning speeds. The frame, made of high-strength structural steel, undergoes thermal stress-relief treatment, ensuring perfect geometric stability. The result is exceptional cutting precision even during dynamic head movements and long-term operation.
Heavy-duty welded steel machine frame designed to provide high rigidity, vibration damping, and long-term stability for CNC laser cutting systems.

Precision rack-and-pinion drive

Axis drives based on helical rack-and-pinion systems enable the transfer of high dynamic loads while maintaining smooth and quiet operation. Combined with servo drives from renowned manufacturers (e.g., Fuji, Schneider, Yaskawa), this solution guarantees maximum positioning accuracy and excellent motion quality. As a result, the machine maintains full precision even at high cutting speeds and rapid direction changes.
Helical rack in a CNC drive system, ensuring smooth, precise, and quiet axis movement even at high operating speeds.

Thermal structure protection

In areas exposed to high temperatures, special insulating layers are used to prevent heat transfer to structural components. Thermal protection eliminates the risk of frame deformation and loss of drive system geometry. This solution is crucial when cutting thick sheets, where generated heat can affect structural stability—in Otinus machines, this effect has been fully neutralized.
Thermal insulation coating inside the laser cutting machine that protects the lower structure from heat damage during high-power cutting of thick sheets at low feed speeds.

Intuitive machine control

A modern control panel with a large touchscreen and CypCut software ensures simple and logical operation of all machine functions. The intuitive interface allows fast parameter input, CAD file import, and cutting path optimization. Additionally, the system includes a wireless controller that enables basic functions to be operated from anywhere around the machine, increasing operator convenience and safety.
HypCut CNC laser cutting control panel with a touchscreen interface displaying cutting parameters, nesting layout, and machine operation controls.

Dynamic crossbeam

The crossbeam, made of lightweight yet durable aerospace-grade aluminum, minimizes inertia and enables very high acceleration. The applied structural solutions ensure high rigidity with low weight, resulting in precise head guidance even at speeds exceeding 120 m/min. The effect is maximum dynamics, accuracy, and reduced order lead times.
Rigid CNC machine gantry with linear guides and dual drive units, engineered for high-precision and stable movement in laser cutting applications.

Automatic table exchange

The automatic table exchange system with two independent pallets significantly increases productivity by allowing simultaneous material loading and unloading. The well-designed exchange mechanism ensures smooth table movement and full operator safety. This enables uninterrupted production cycles, maximizing machine utilization and plant efficiency.
Enclosed Otinus CNC laser cutting machine with an automated shuttle table, designed for safe, efficient loading and unloading of sheet metal during continuous production.

General specifications

Parameter

Value
Nominal working areas (X, Y)

3,000 × 1,500 mm
or 6,000 × 2,500 mm
Cutting head travel (Z axis)

315–375 mm
Working table load capacity

900 – 3,000 kg
X, Y axis positioning speed (simultaneous)

115 m/min
X, Y, Z axis drives

YASKAWA SGD-Series /
Schneider LXM-Series
X, Y axis drive transmission

rack and pinion, helical teeth
Z axis drive transmission

ball screw
Acceleration

up to 15 m/s²
Support comb spacing

72 mm
Scrap and small part sorting

manual, pull-out trays
Dust extraction system

integrated, sectional
Frame

steel, monolithic
Crossbeam

aluminum
Lubrication system

automatic

The technical parameters provided are indicative and fall within typical ranges for available machine configurations. Actual values may vary depending on the selected laser power, equipment version, or working area size. To obtain detailed information for a specific model, use the “Request a quote” option and send us an inquiry—we will prepare a tailored technical specification.

Standard equipment
